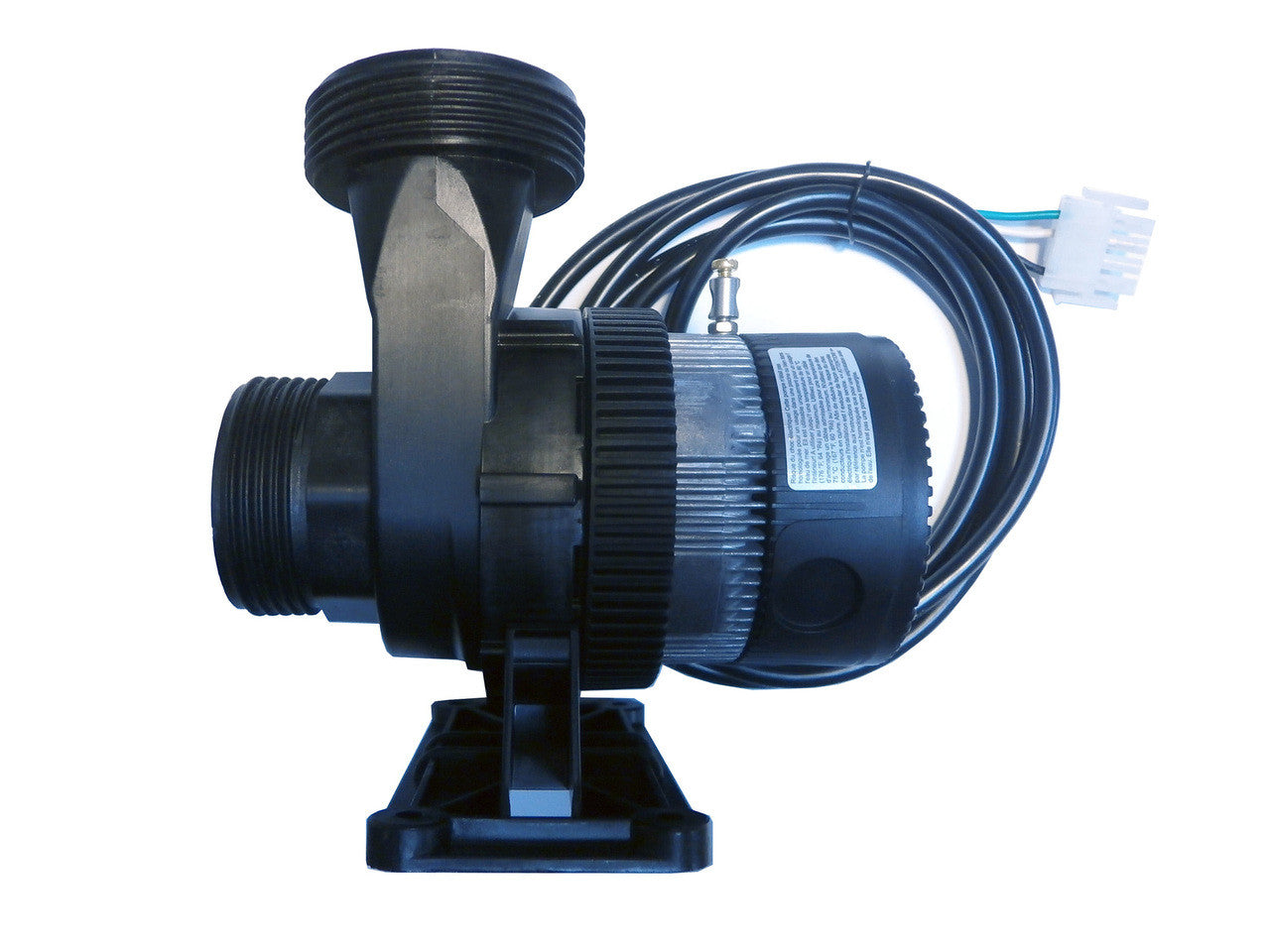

X400825 - Master Spas - Laing Thermotech Circ Pump E14-NSTNDNN2W-02 230/240v 50/60hz Starting 2009

X400825 - Master Spas - Laing Thermotech Circ Pump E14-NSTNDNN2W-02 230/240v 50/60hz Starting 2009

This is the latest version available from Master Spas
• This pump is made by Goulds Water Technology
• This is a Genuine OEM Direct Replacement Master Spa Part

Specifications:
• The Laing Series E14 is a highly effective and virtually silent spa pump that delivers optimum performance
• Master Spas Part Number: X400825
• 230V/240V 50/60hz
• 1 1/2 in Buttress
• High density ceramic bearing ball and graphite impeller bearing cap designed for high efficiency and long life
• 40 percent more efficient than standard induction motors
• Electronically commutated
• Shaftless, seal less, and leak proof motor (ECM)
• Built in Dry Run Protection
• Resistant Helps with CEC title 20 compliance to clogging
• 1/3 the weight (less than 4 lbs)
• Less noise (end 48 Frame growl)
• Make sure that you connect the Grounding lug to the Ground on the Spa Pack

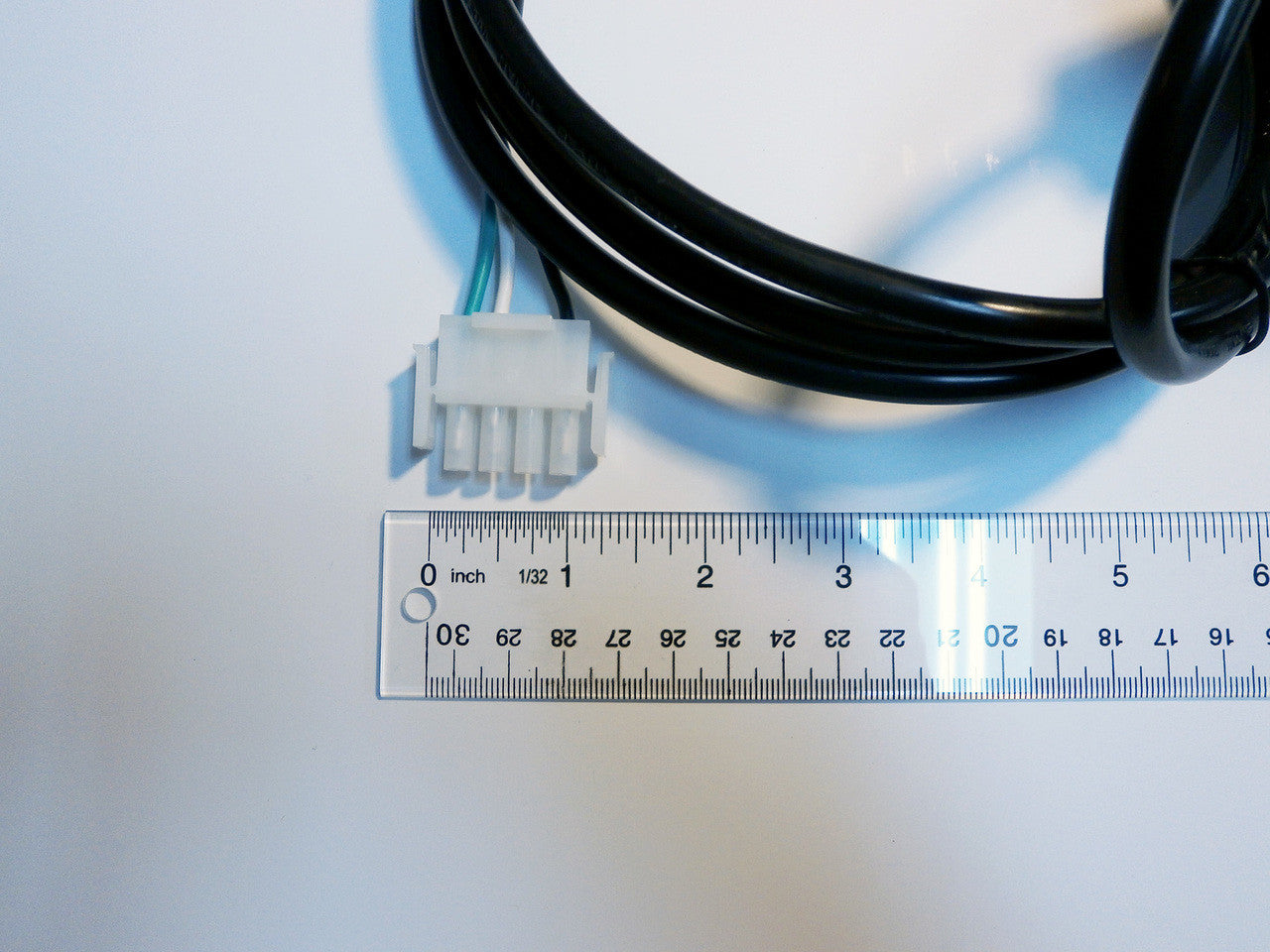

• Cord Length: 6 feet (72 inches) (182.88 mm) - Measured Length of sample was 79 inches (200.66 mm)
• UPC: 733886733488

Also Known As:
• MFG #73229
• MFG #73348
• MFG #37749
• MFG #10-0107
• MFG #X400825
• MFG #6080U0016
• MFG #733886733488
• MFG #LMB07102983
• MFG #LHB07100142
• MFG #NSTNDNN2W-02

Dimensions (Approximate):
• Length: 6.25 inches (15.875 cm)
• Width: 3.75 inches (9.525 cm)
• Weight: 3.45 lbs. (1565 g)
• Intake Outer Diameter: 2.375 inches (6.0325 cm)
• Intake Inside Diameter: 1.8125 inches (4.60375 cm)
• Discharge Outer Diameter: 2.375 inches (6.0325 cm)
• Discharge Inside Diameter: 1.8125 inches (4.60375 cm)

• Manufacturer: Master Spas, LA Spas, Clearwater Spas

• 73348 / X400825 / 73229 / 37749 Master Spas LA Spas Clearwater Spas Pump Max Capacities: 36 GPM Max Head: 10.5 Union Connections: 1 Buttress Threads Suction and Discharge Maximum Working Pressure: 50 PSI Maximum Temperature: 140 F Rotation: counter clockwise when viewed from the motor end Motor Electronically Commutated AC/DC/AC Spherical Motor Canned Spherical Type Motor 230 Volt 0.45 Amps 110 Watts 50/60 Hz, 2100RPM Automatic Overload Protection Low In-Rush Current Dry Run Protection

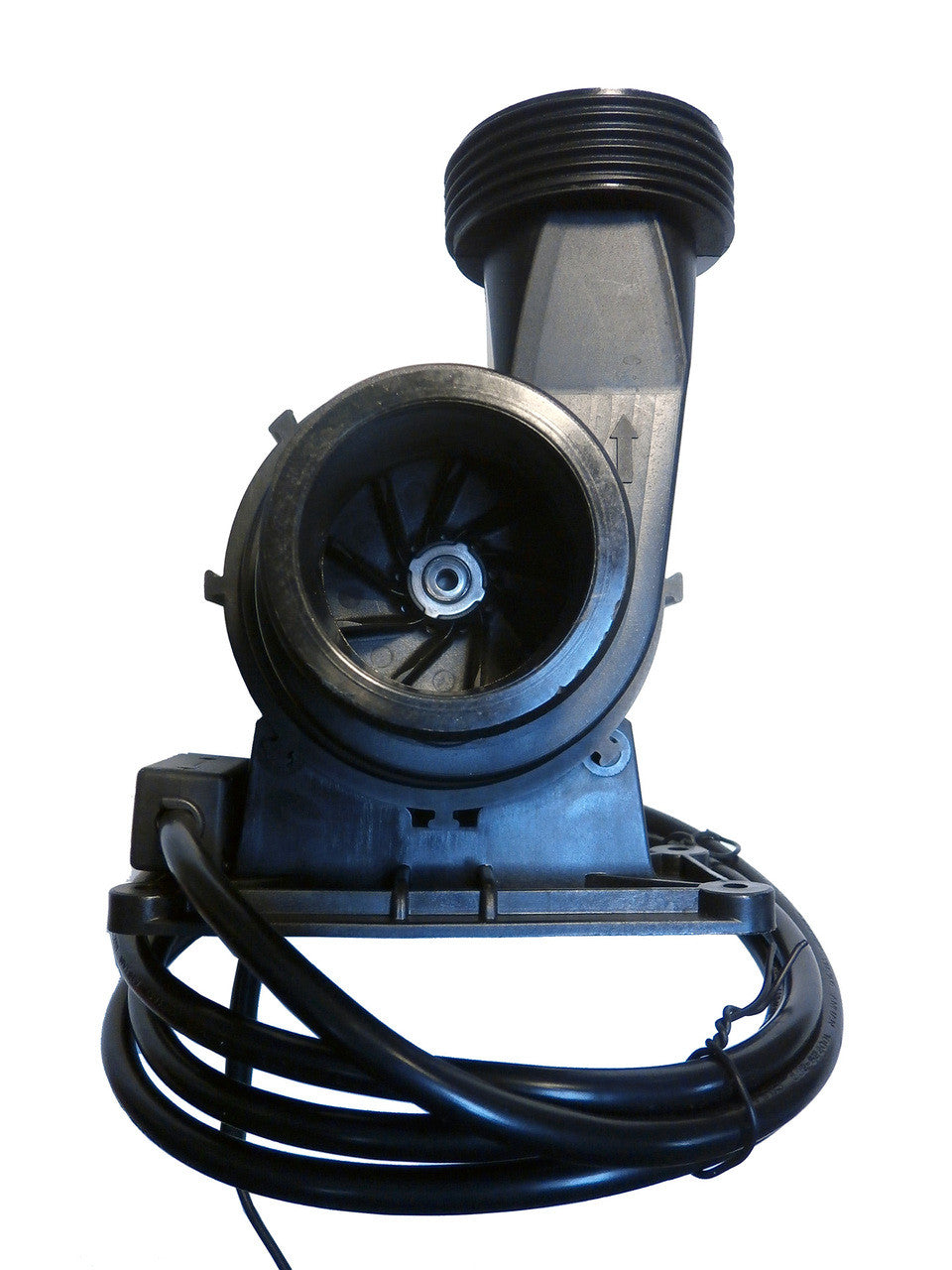

• The Laing Series E14 is a highly effective and virtually silent spa pump that delivers optimum performance. Its motor has a low in-rush current and is 40% more efficient than standard induction motors. The Laing Series E14 was designed with space saving in mind and is easy to install. Its thermoplastic housing and unique patented mechanical seal increase durability and reduce the occurrence of leaks. Additional features like its open impeller and embedded microprocessor control make it resistant to clogs and protect against dry running

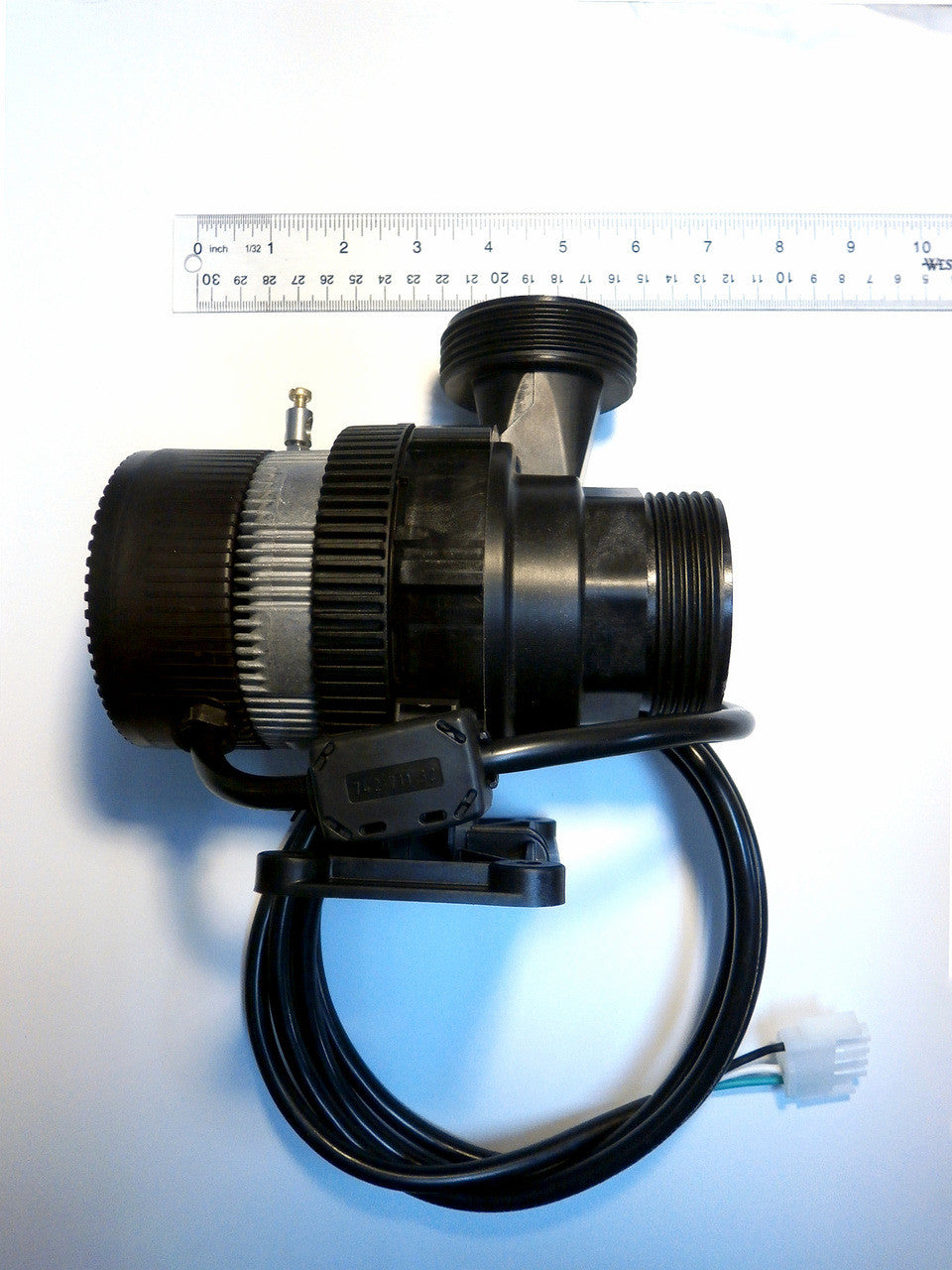

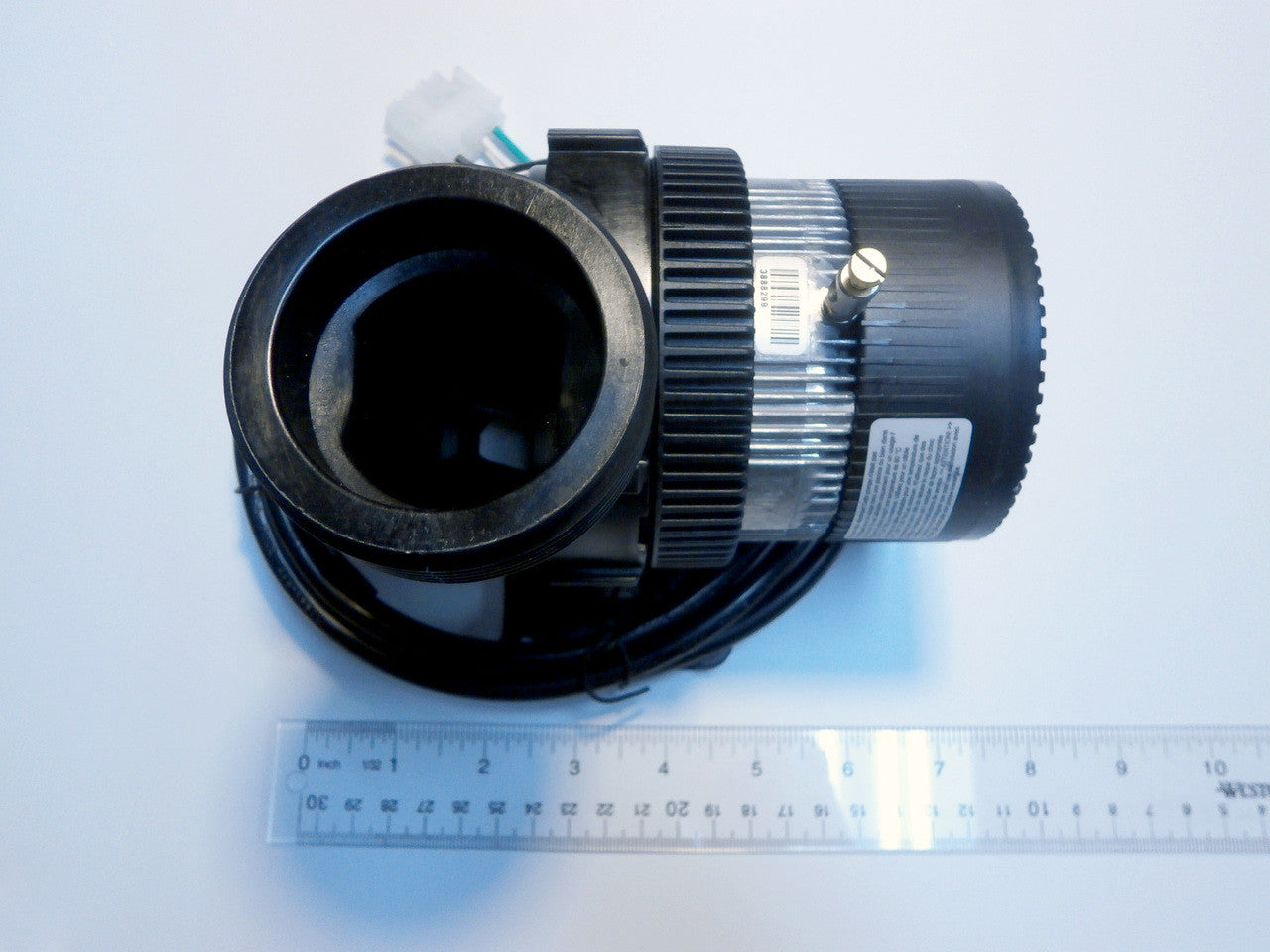

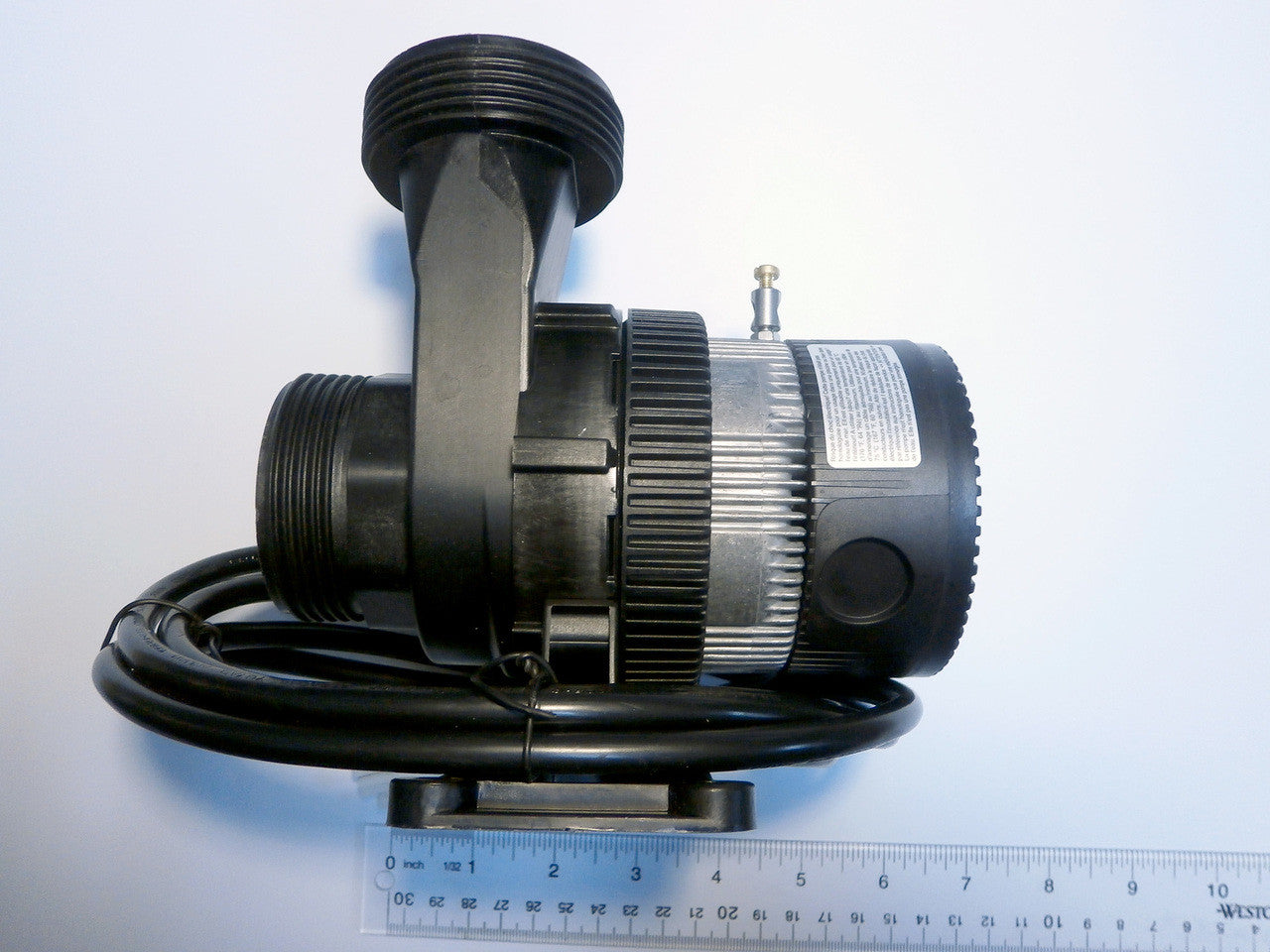

• The Laing circulation pump X400825 has been redesigned by the manufacturer to increase it's reliability. All orders for part number X400825 will be filled with the latest version of this redesigned circulation pump. This new pump is directly interchangeable with the previous except for the addition of a bonding lug (Not Shown in Picture) that has been added to the top of the motor body. When replacing one of the original style pumps with the new style it will be necessary to run a copper wire from the pump bonding lug (Shown in Pictures) to the grounding bar located on the spa control pack

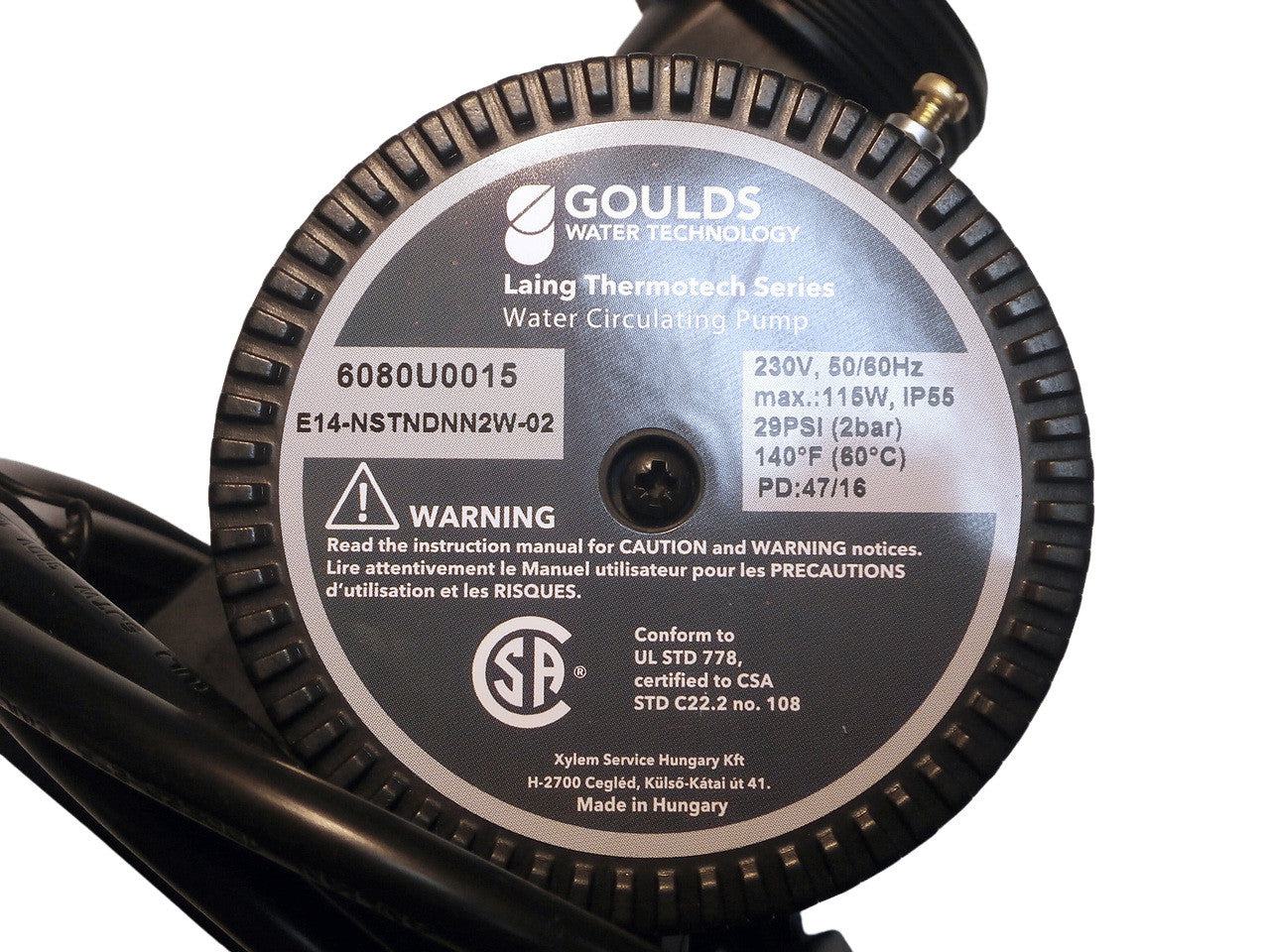

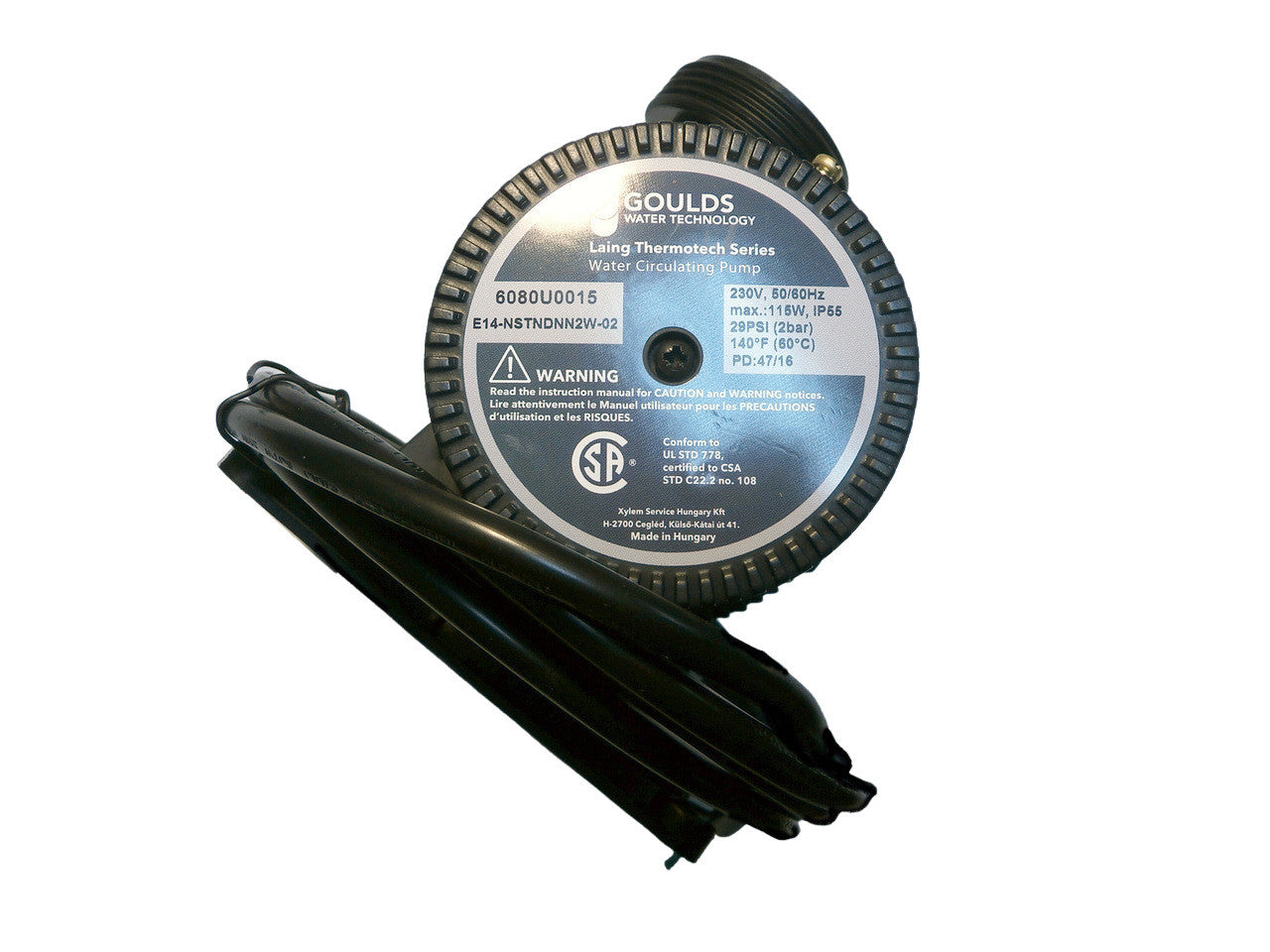

• We have the newest version of the pump: Goulds Water Technology Laing Thermotech E14-NSTNDNN2W-02 Laing Thermotech 6080U0015

Shipping Weight:
• 3.75 lbs. in a 7x7x7 inch Box

Other parts associated with this pump:

X277500 - 2 inch x 1.5 inch Pump Adapter

X280401 - 2 inch Pump Union O-Ring

X275210 - 2 inch Pump Union (Standard)

X278955 - Laing Adapter 1-1/2" FBT X 2" MBT With O-Ring Groove
