X321792 Spa Pump - Center Discharge, 120V Aqua-Flo Circ Pump

This pump replaces X321791, Customers must also purchase X232305 as this pump is not pre installed with a bleeder valve. To install, remove one of the drain plugs and install X232305.

This is a Genuine OEM Direct Replacement Master Spa Part

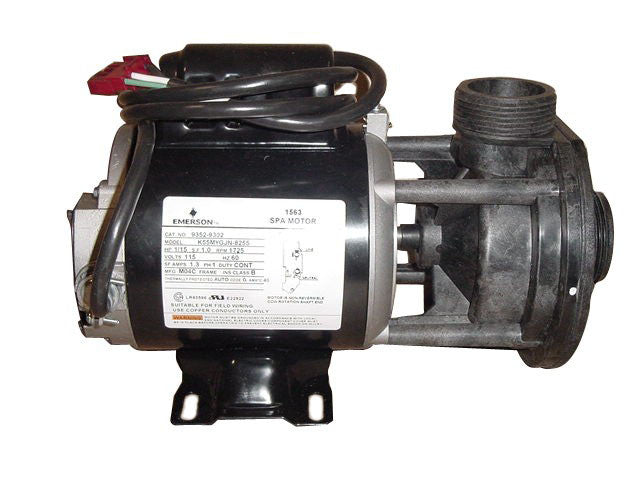

X321792 Spa Pump - Center Discharge, 120V Aqua-Flo Circ Pump

CAT.NO. 9352-9302-A
MODEL K55MYGJN-8255
HP 1/15 S.F. 1.0 RPM 1725
VOLTS 115 HZ 60
SF.AMPS 1.3 PH 1 DUTY CONT
INS CLASS B
THERMALLY PROTECTED AUTO CODE G AMB°C 40

The inlet and outlets measure 1.5 inches (approximately 3.81 cm)
