Master Spa - X259200 - Spa Lighting - Complete 3 inch Light Assembly

X259200 - Spa Lighting - Complete 3 inch Light Assembly

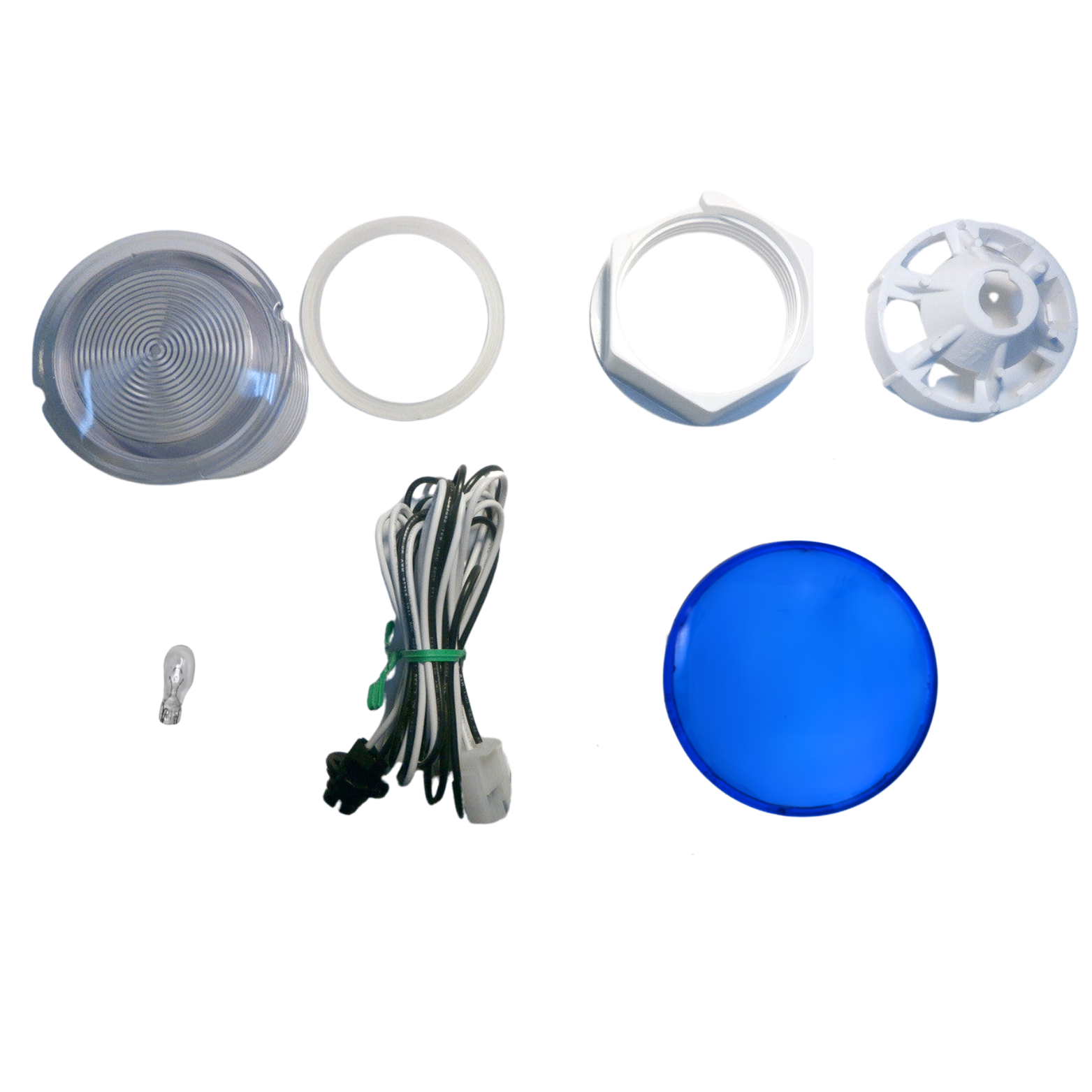

This Kit Contains 8 Parts:
1 Clear Body Lens
Lens Diameter (Face): 3.1875 inches (8.09625 cm)
Lens Diameter (Body): 2.5625 inches (6.50875 cm)
Lens Height: 2.50 inches (6.35 cm)
Weight: 2.6 oz. (70 g)
1 Colored Convex Lens: Red
1 Colored Convex Lens: Blue
Colored Lens Diameter (Face): 3.50 inches (8.89 cm)
1 Wire Connector
Wire Connector Length: 96 in [8 ft] (243.84 cm)
Description Black and White wires Lamp Receptacle on one side, molex on the other
1 Lamp Base
Lamp Base Outside Diameter (Face): 2.9375 inches (7.46125 cm)
1 Nut
Nut Outside Diameter (Face): 3.25 inches (8.255 cm)
Nut Inside Diameter (Face): 2.50 inches (6.35 cm)
1 Gasket
Gasket Outside Diameter (Face): 3.00 inches (7.62 cm)
Gasket Inside Diameter (Face): 2.50 inches (6.35 cm)
1 X802850 - Spa Lighting - Spa Light Bulb
Spa Light Bulb Length: 1.375 inches (3.4925 cm)
Spa Light Bulb Width: 0.75 inches (1.905 cm)
