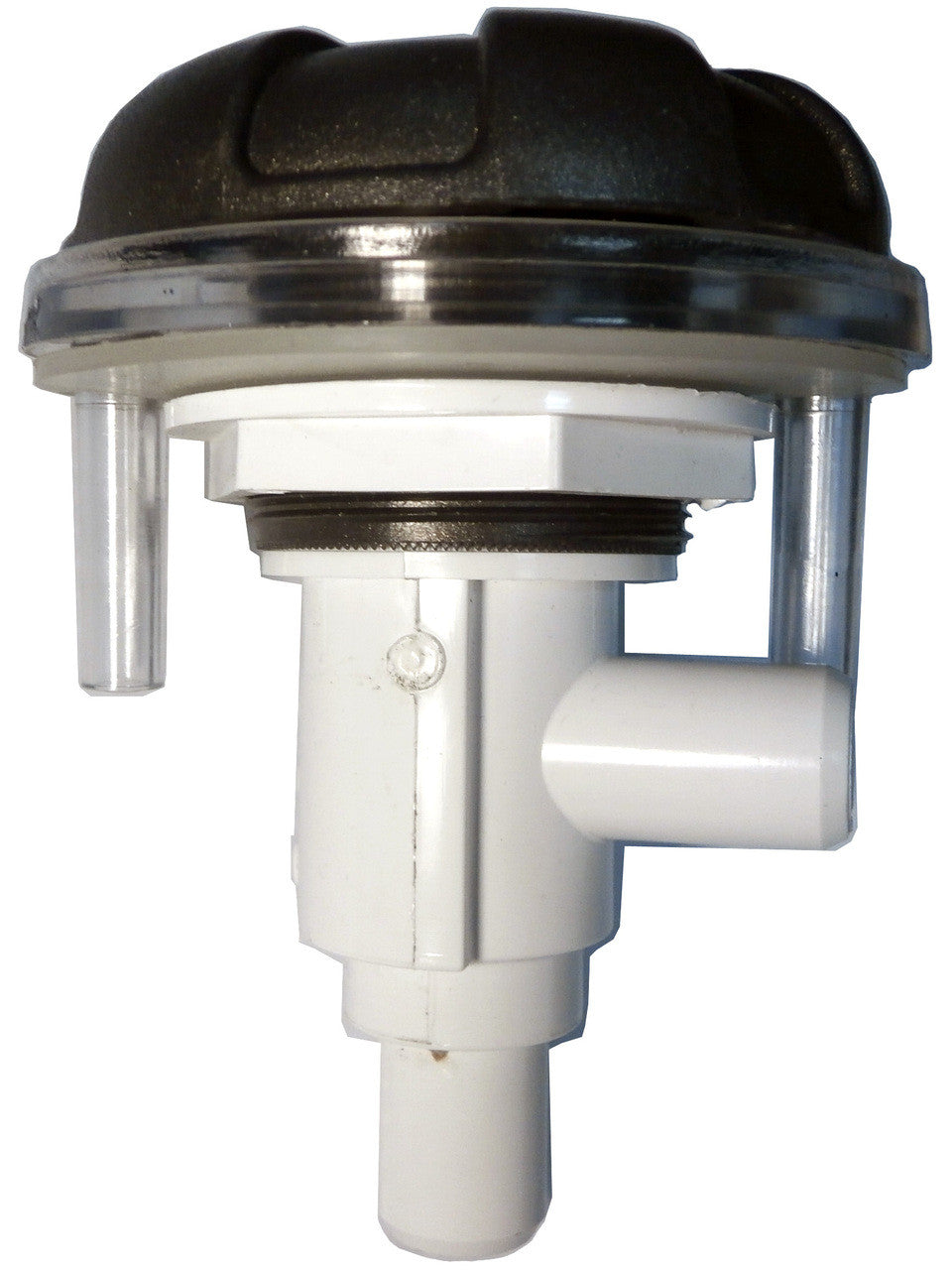

Master Spa - X245370 - DSG 6-Spoke Waterfall Diverter Assembly Starting 2009

X245370 - DSG 6-Spoke Waterfall Diverter Assembly Starting 2009
This part is intended for use with 1 inch inside diameter plumbing

If you open up this unit, you will see a "rotor", you will not see is a ball valve assembly.

You may see LED 602-4460 and 602-4450 on the clear plastic beneath the handle on this par, but beware this number is also on X245380 - DSG 6 Spoke 1 inch LED Diverter Valve (Starting 2009)

On the Black Screw Cap beneath the Domed Handle, you will see
602-4360 (This part number is also in other Master Spas Diverter Assemblies)

On the PVC Plumbing beneath the Waterway Logo, you will see
602-410
3/4 B
602-0400
3/4 S

Includes:
1 x Master Spas Diverter Valve assembly for Twilight Spas and also for some other models
This unit is sold as an entire assembly, and is not sold separately as components.

Dimensions:
Unit Width: 3.75 inches (9.525 cm) [Cap]
Unit Width: 2.625 inches (6.6675 cm) [T-Section]
Unit Height: 5.00 inches (12.70 cm)
Unit Weight: 7.6 oz. (215.4 g)
Plumbing ID: .50 inches (1.27 cm)
Plumbing OD: .75 inches (1.905 cm)

Other items associated with this part:
X245375 - 2 inch DSG 6-Spoke Diverter Assembly Starting 2009
X232595 - LED Lit 6 Spoke Air Control (Starting 2009)

X245370R - 1 inch Black Diverter Rotor Assembly for X245370
